Dragon Ply Species - Hardwoods Specialty Products

Ash

Black Walnut

Cherry

Hickory

Red Birch

Red Oak

Sapele

White Birch

White Maple

Available Cores

Acacia Eucalyptus Core

Combi Core

Asia Ply Core

Elliotis Pine Core

Eucalyptus Core

Euro Birch Core

Falcata Eucalyptus Core

Lumber Core

MDF Core

MDF X-Band Core

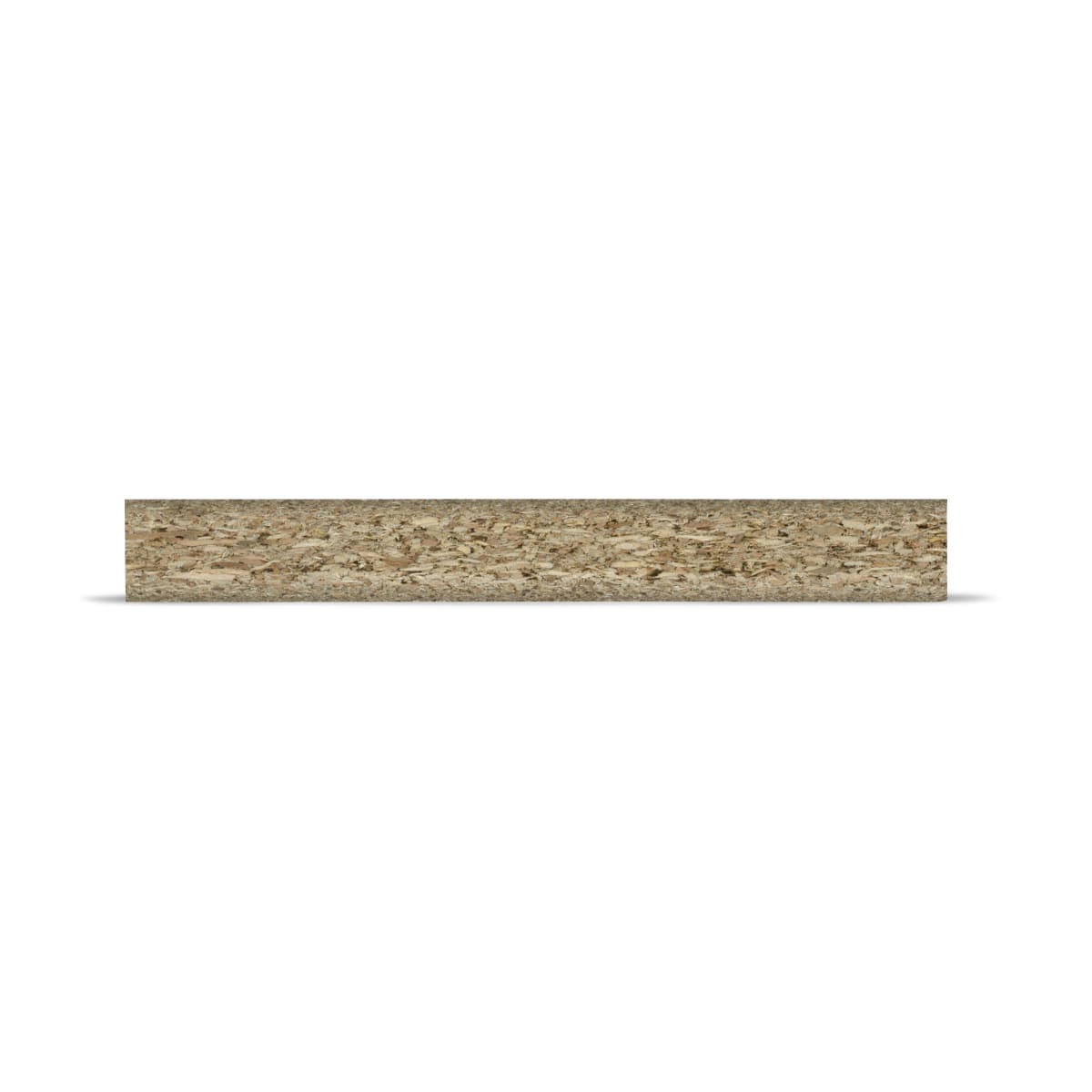

Particleboard Core

Radiata Pine Combi Core

Radiata Pine Mixed Hardwood Core

Tropical Core

Ultralightweight
Falcata Core

Physical Properties*	Dragon Ply Urea TSCA	Domestic Urea TSCA	Domestic NAUF/Soy
Density (lb/ft3)	36.3	35.1	30.3
Specific Gravity (n)	0.529	0.525	0.445
MOR (psi)	6,711	6,801	4,550
MOE (psi)	1,025,018	1,013,688	766,833
Direct Nail Withdrawal (lbf)	122	110	74
Lateral Nail Resistance (lbf)	510	565	492
Direct Screw Withdrawal (lbf)	352	372	208
Lateral Screw Resistance (lbf)	787	774	616
* Test data is based on 9mm panels

Physical Properties*	Dragon Ply Urea TSCA	Domestic Urea TSCA	Domestic NAUF/Soy
Density (lb/ft3)	36.3	35.1	30.3
Specific Gravity (n)	0.529	0.525	0.445
MOR (psi)	6,711	6,801	4,550
MOE (psi)	1,025,018	1,013,688	766,833
Direct Nail Withdrawal (lbf)	122	110	74
Lateral Nail Resistance (lbf)	510	565	492
Direct Screw Withdrawal (lbf)	352	372	208
Lateral Screw Resistance (lbf)	787	774	616
* Test data is based on 9mm panels
